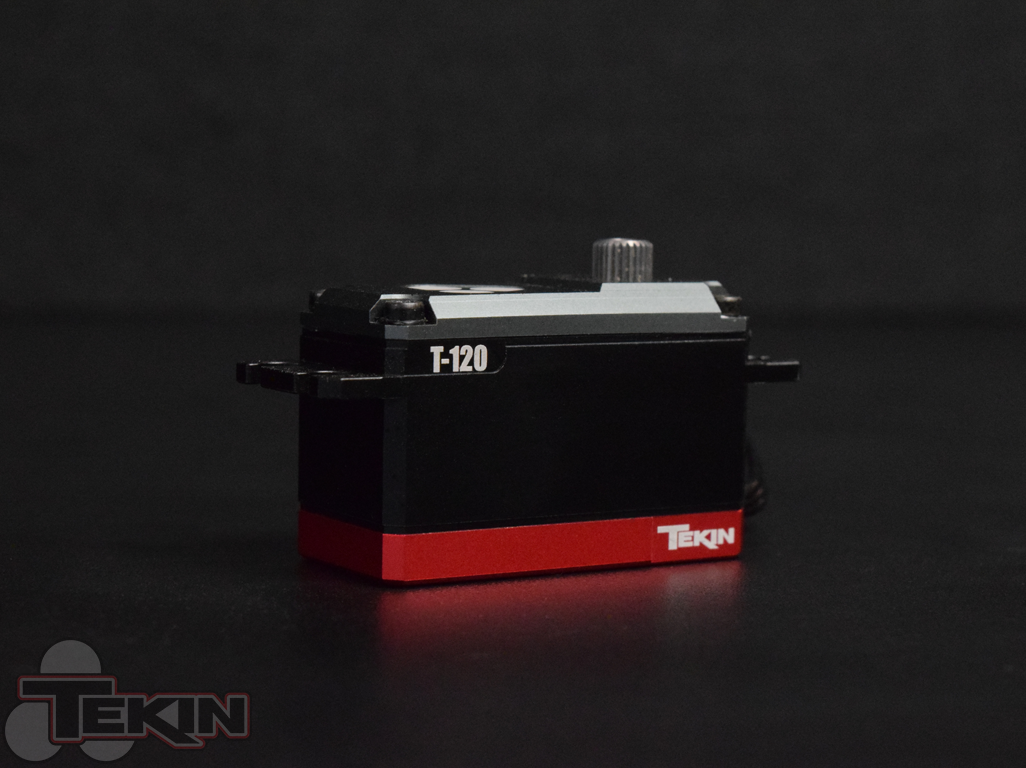

T-120 Servo – TT1500

Description

T-120 Servo – TT1500

Speed and accuracy combine making this T-120 Lo-Pro Servo a perfect choice when precision and quick reflexes are at work. Designed to give you the industry’s highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin’s HotWire PC Interface.

FEATURES

Specifically Designed for 1/12 and 1/10 Scale Applications

Included Aluminum Vectorâ„¢ Servo Arm

Full Aluminum Servo Housing

LP = Low Profile Design

Precision Cut Full Metal Gears

ABEC5 Ball Bearings

Digital Magnetic Position Encoder

High Voltage Capable

High Torque Coreless Motor

25T Output Spline

Programmable via HotWireâ„¢ Interface*

Overload Protection Technology

Thermal Protection Circuitry

Low Voltage Alarm*

Quiet, Efficient, Cool Operation

HDAC: High Density Copper PCB's

*requires HotWire sold separately

SPECS

Torque
– 6.0V 110 oz/in, 7.9 kg/cm
– 7.4V 128 oz/in, 9.2 kg/cm
– 8.4V 141 oz/in, 10.1 kg/cm

Dynamic Torque
– 6.0V 190 oz/in, 13.7 kg/cm
– 7.4V 227 oz/in, 15.8 kg/cm
– 8.4V 256 oz/in, 18.5 kg/cm

Speed (sec/60°)
– 6.0V .06 sec/60°
– 7.4V .05 sec/60°
– 8.4V .04 sec/60°

Input Voltage 4.8 – 8.4V

Gear Set Full Metal

Dimensions
– 1.57 x 0.79 x 1.06in, 40 x 20 x 27mm

Mounting Height – Base to Tabs 0.72in, 18.4mm

Weight 1.92oz, 54.6g
