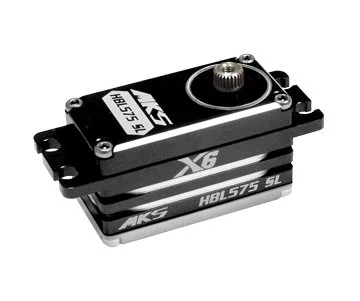

HBL575SL (0.07 sec/60 – 233.31 oz/in @7.4V) – MKS-HBL575SL

Description

HBL575SL (0.07 sec/60 – 233.31 oz/in @7.4V) – MKS-HBL575SL

Spline Size 6mm 25 tooth

Control System +Pulse Width Control

Working Frequence 1520μs / 333hz

Operating Voltage 3.5 ~ 7.4 Volts

Operating Temperature Range -10 to + 60 Degree C

Operating Speed (4.8V) 0.10 sec/60° degrees at no load

Operating Speed (6V) 0.08 sec/60° degrees at no load

Stall Torque (4.8V) 138.87 oz/in (10 kg/cm)

Operating Speed (7.4V) 0.07sec/60° degrees at no load

Stall Torque (6V) 184.70 oz/in (13.3 kg/cm)

Stall Torque (7.4V) 233.31 oz/in (16.8 kg/cm)

Motor Type Brushless Motor

Potentiometer Drive Indirect Drive

Bearing Type 12×8 mm Double bearings

Gear Type Metal alloy gear

Dimensions 40 x 20 x 23.1 mm

Weight 53.51 g
